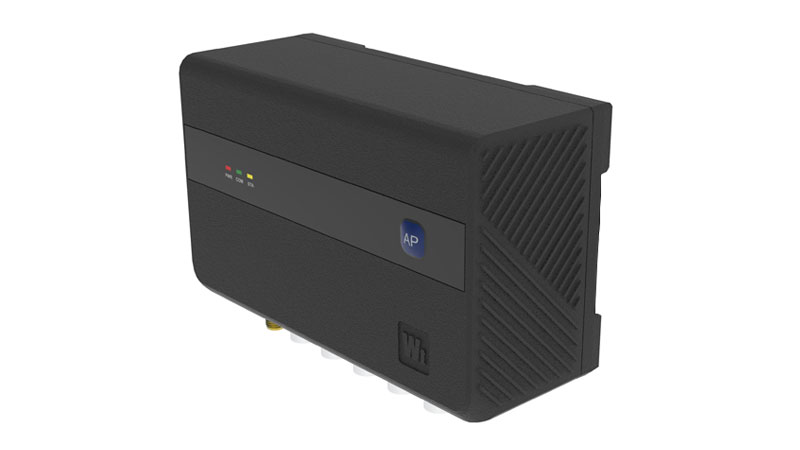

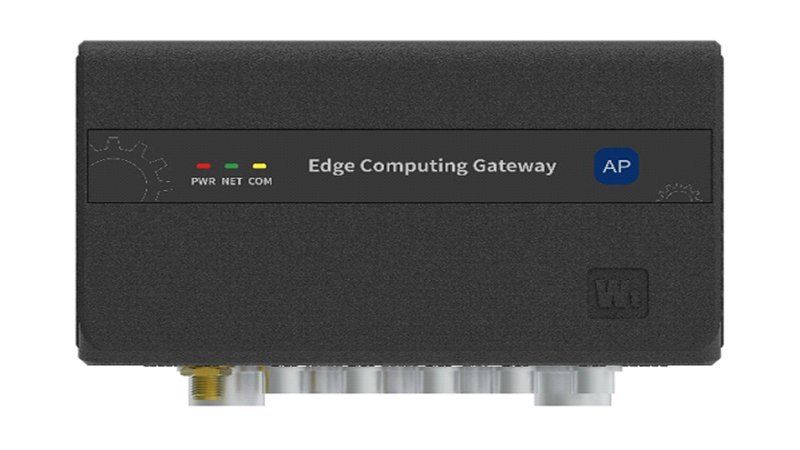

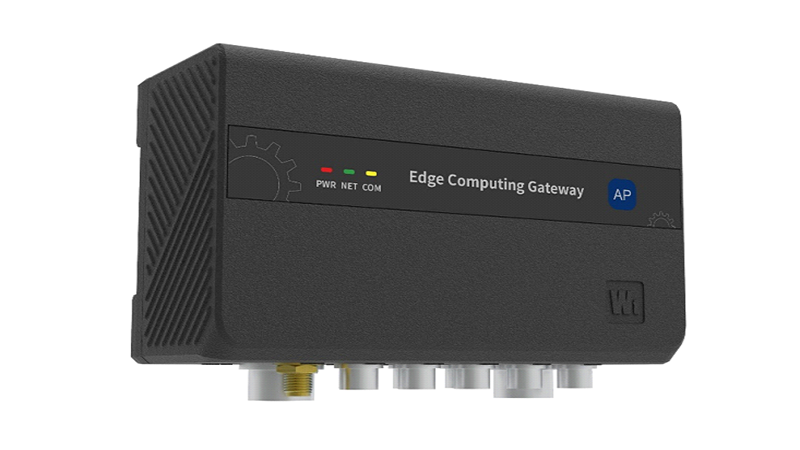

Industrial Edge Computing Gateway

Product Overview

WTG9XXX series edge computing gateway product is based on technology support of embedded chip with high performance, real time operating system and edge AI algorithm, perform data preprocessing, storing and intelligent analysis application at the network edge close to equipment or data source. Our product is integrated with ideas of multiple redundancy and isolated interaction, it is designed with reliable vibration protection mechanical structure and intelligent monitoring diagnostic capability, support several wireless transmitting methods, applicable to all kind of industrial onsite environment.

Product Characteristics

Support up to 6 channels Triaxial vibration sensor input
Supports sampling frequencies up to 26khz Vibration sensor input
Support rotating equipment oil temperature and Motor three winding temperature input
Support WiFi, 4G and other wireless access Cloud communication mode
Initial failure of embedded witium Prediction algorithm model
High performance AI computing power，Real time optimization model

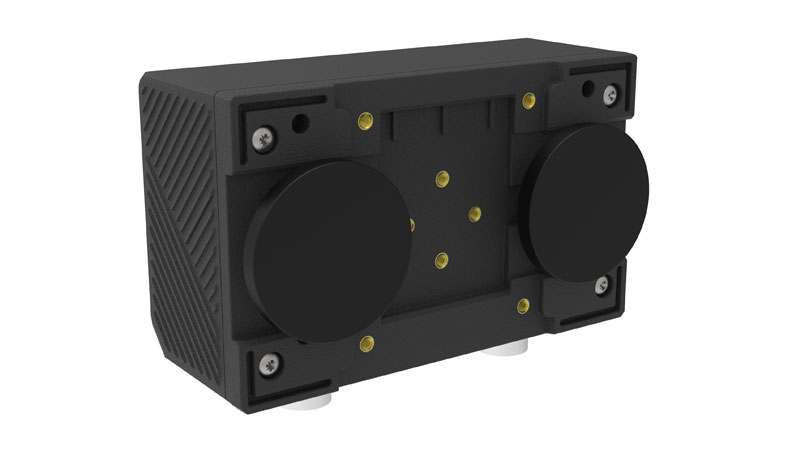

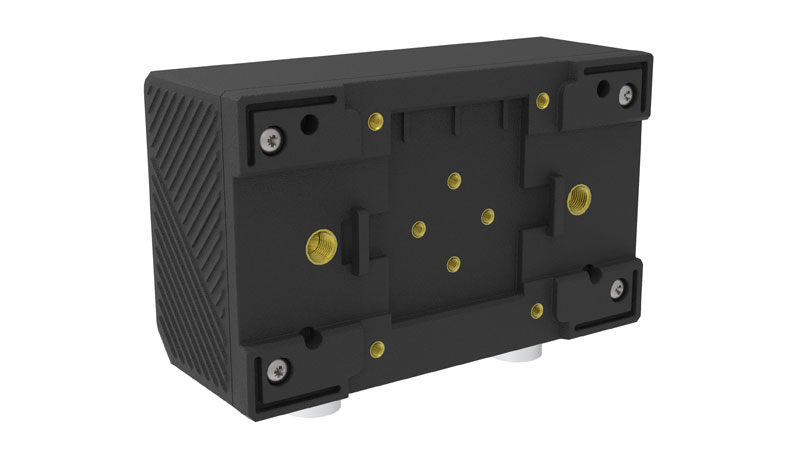

Support a variety of installation methods, such as magnet adsorption, flange fastening and guide rail installation
Have CE certification, meet the harsh industrial electromagnetic compatibility
IP67 protection, especially suitable for outdoor use

Product Parameters

MODEL

WTG9XXW

WTG9XXF

WIRELESS COMMUNICATION PARAMETER

Communication

WiFi

4G
Mbps

3Mbps

5.67 Mbps
DTE-DTE

Open environment 40m
(3dbi Antenna)

-
Antenna

Internal / External antenna (optional)
Data Content

Eigenvalue or real-time vibration data
Radio Frequency

2.4GHz

LTE-FDD：B1/B3/B5/B8
LTE-TDD:B38/B39/B40/B41
Work Method

STA/AP

-
Power Waste

Sleep mode Low power mode

-

MAIN PARAMETER

Vibration Channels

1-6 Optional Channels
Interface

RS485(ModBus-RTU)
Vibration Sensing Sampling Rate

Characteristic value 30 minutes/ Real time data 15 days
Engine Oil Temperature

1 Pt100 Breakage Detection
Tri-winding Temperature

3 Pt100 Breakage Detection
LED

1 * PWR lamp (red)，1 * PWR lamp (yellow)，1 * PWR lamp (green)
Key

STA work, AP configuration

SET configuration
Watchdog

System watchdog

BASIC PARAMETER

Power Input

DC:12V-36V/AC:85-262V
Work Temperature

-30～70°C
Storage Temperature

-40～85°C
Work Humidity

10%-95%(No condensation)
Protection

Overload Protection/ Output short-circuit Protection/Overheat Protection
IP Rate

IP67
Installation

Industrial Rail/Magnetic Fix/ Flange Fix/Buckle
External Dimensions

110*70(85 Aerial insertion)*47mm
Shell Materials

Plastic shell （PA66+FG15）
Surface

PET+Silk Screen Printing

AVIATION JOINT
BASIC PARAMETER

Adaptive Power Supply

M12（3-pin）-1red：220VL 2black：220VN 3white：PGND
M12（3-pin）-1red：24V+ 2black：24V- 3white：PGND
vibration sensor

M6(5-pin shield)-1brown:VCC 2grey:GND 3green:485A 4yellow:485B 5white:WKUP
RS485

M6(5-pin shield)-1brown:485A1 2grey:485B1 3gerrn:GND 4yellow:485A2 5white:485B2
Oil Temperature Sensing

M6(3-pin)-1red:RTD1+ 2black:RTD1- 3white:RTD1COM
Winding Temperature Sensing

M12(9-pin)-1brown:RTD2+ 2red:RTD2- 3orange:RTD2COM
4yellow:RTD3+ 5green:RTD3- 6blue:RTD3COM
7grey:RTD4+ 8white:RTD4- 9black:RTD4COM
EMC

CE/IEC 61131-2
Environmental Standard

ROHS
Anti Vibration Standard

EN 61131-2:2007
Impact Resistance Standard

CE/IEC 61131-2
